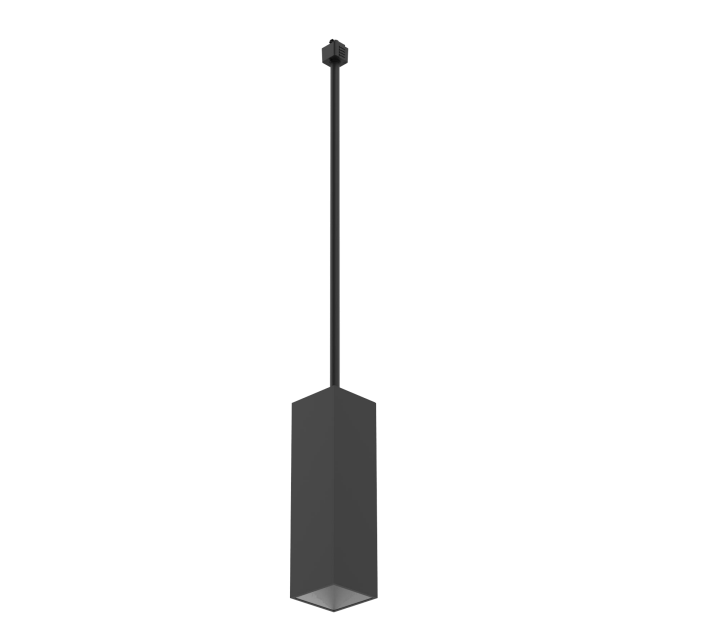

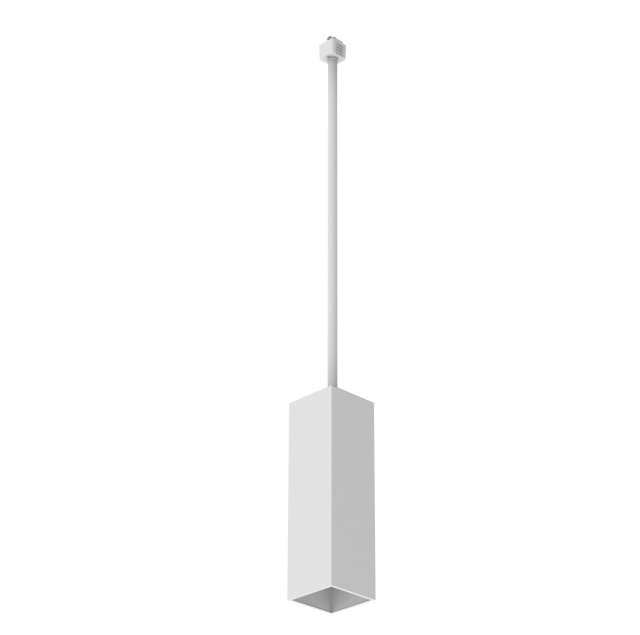

3.5 Inch Square Share Cylinders LED Pendant Downlight

3.5 Inch Square Share Cylinders LED Pendant Downlight

Series : LED Pendant Downlight
Wattage : 10W/16W/20W
Light Source : LED
CCT : 2700-4000K
Shape : Cylinders


– Sleek, high performance pendant complements pendant downlighting family.

– Unique flush, surface mount design allows for precise alignment and adjustment.

– All aluminum construction, powder coat painted in white, black or silver finish for harsh, weatherproof applications.

– 120V AC Direct technology in 10W, 16W or 20W dimmable modules with integrated circuit.

– Easy installation and ultra energy efficient.

– Dedicated 9° optic with field changeable 12°, 24°, 36° & 50° optics.


Material: Die cast aluminum

Input Voltage: 120/277v 50/60Hz input

Wattage: 10/16/20W

CCT: 90 CRI & 80 CRI in 2700K, 3000K, 3500K and 4100K

PF: >0.98

Shape: Cylinders


Pendant mounted.

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through.

5 Year Limited Warranty.

Product File Download

# File Added by File size Downloads
1 pdf AL35-VA-SFM liteharbor 177 KB 52
