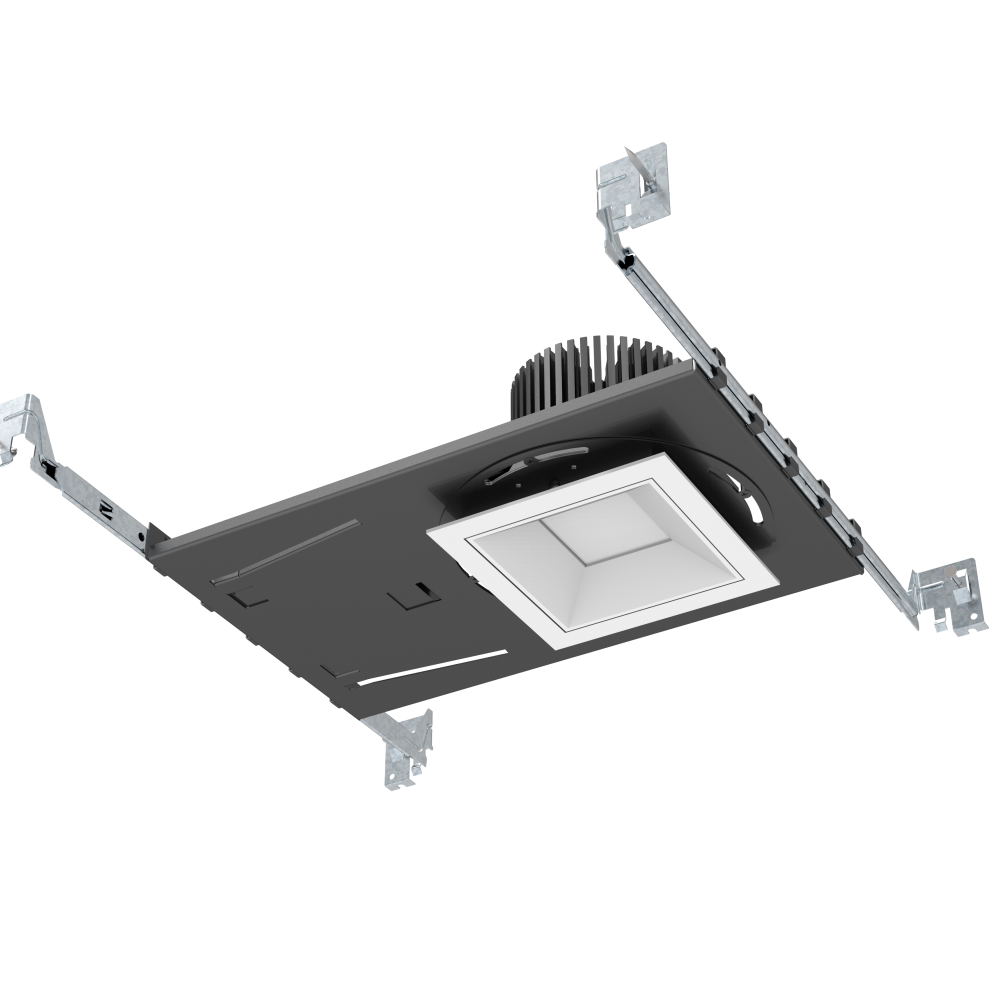

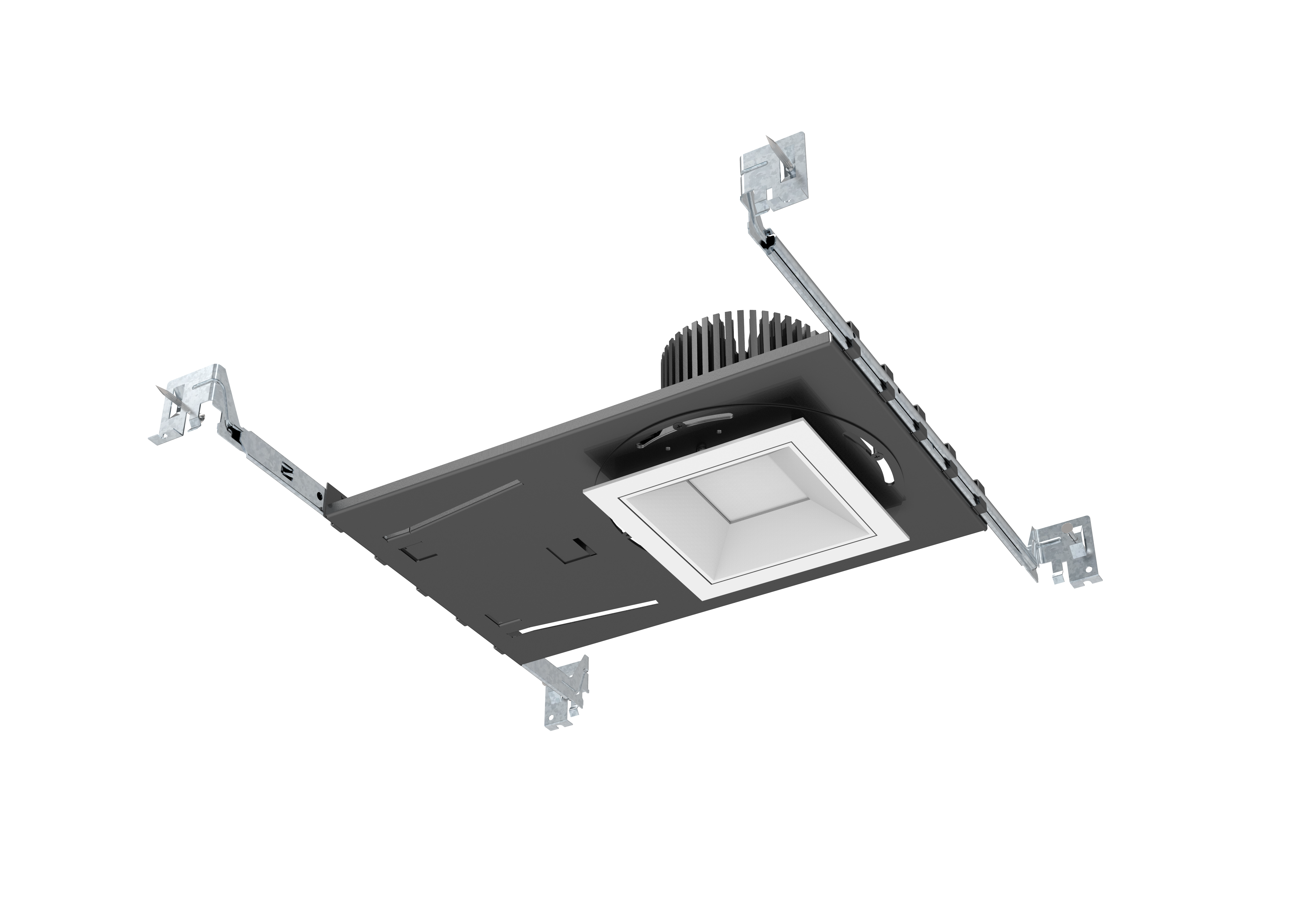

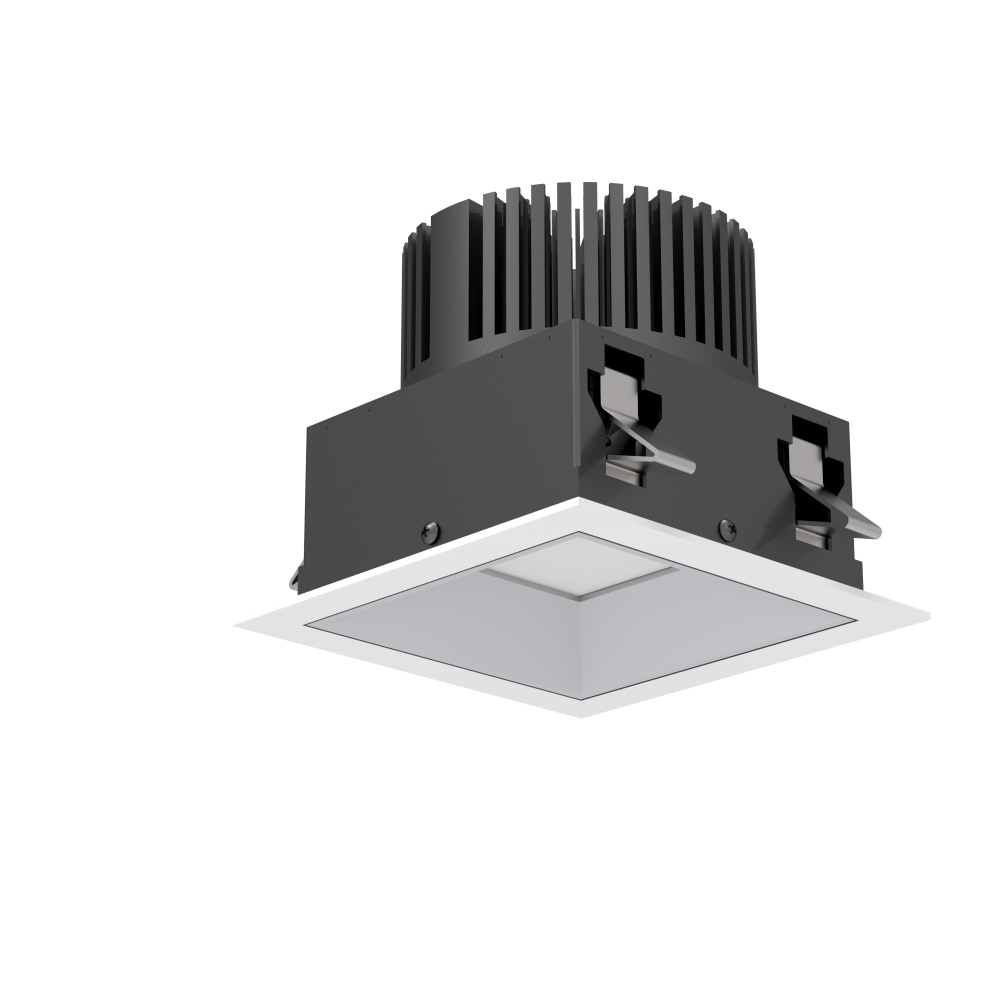

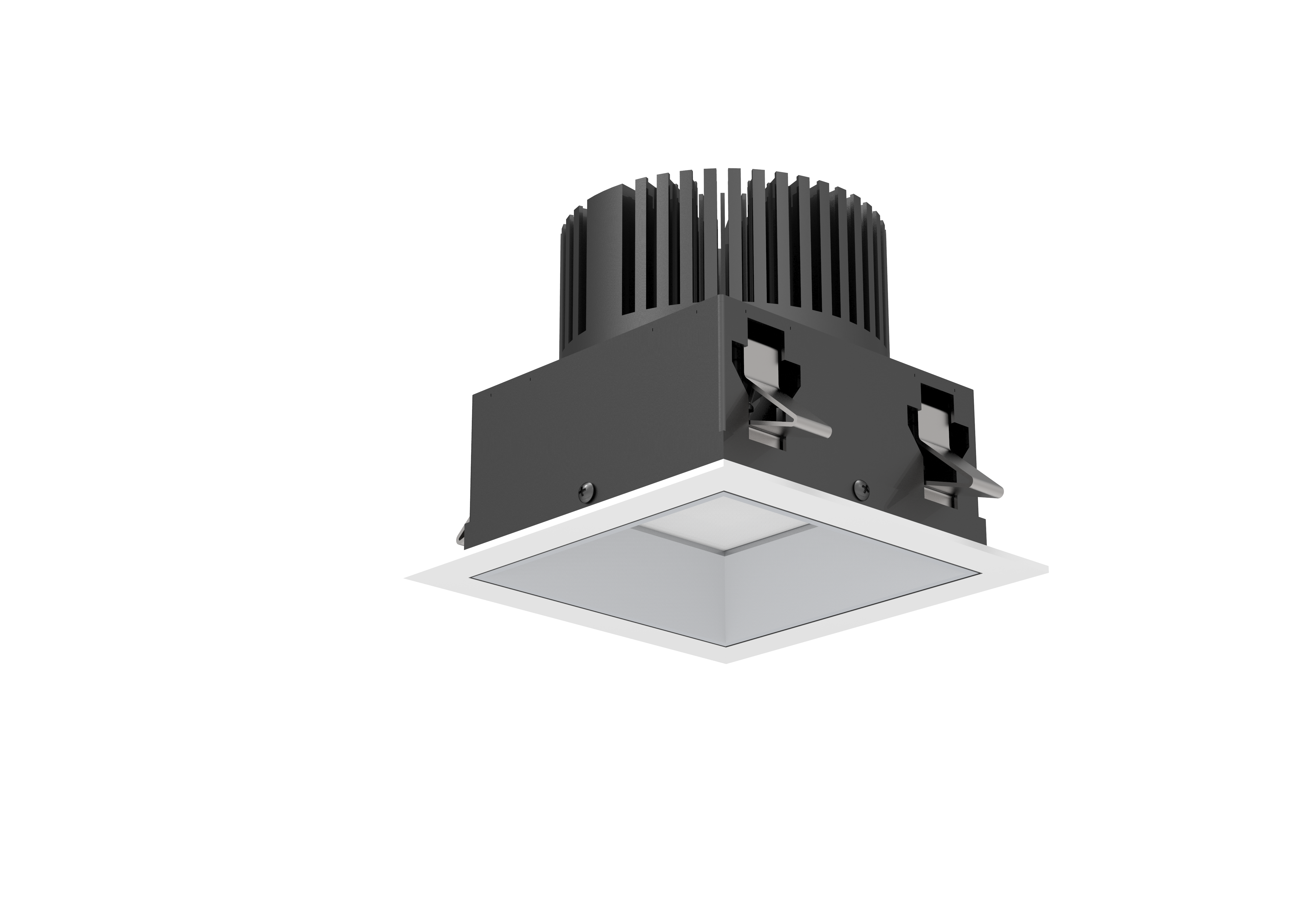

4″ New Construction Square Commercial Trimmed or Trimless LED Recessed Downlight

4″ New Construction Square Commercial Trimmed or Trimless LED Recessed Downlight

ITEM No.: AL4-NC
Power : 15/20/30W
Voltage : 120/230/277V
Lumen : 1000/1500/2250LM
Power factor : PF>0.98
CRI : 80+CRI/90+CRI
Frequency : 50/60Hz
Dimmable : NONE/TRIAC/RD 0-10V
CCT : 2700/3000/3500K
Lifespan : 50000 H
Certification : ETL

Features

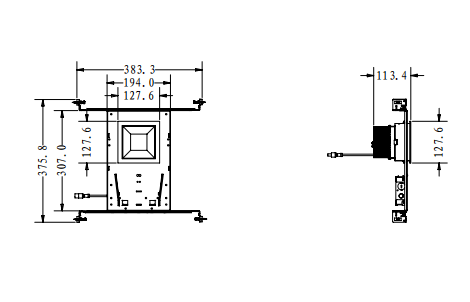

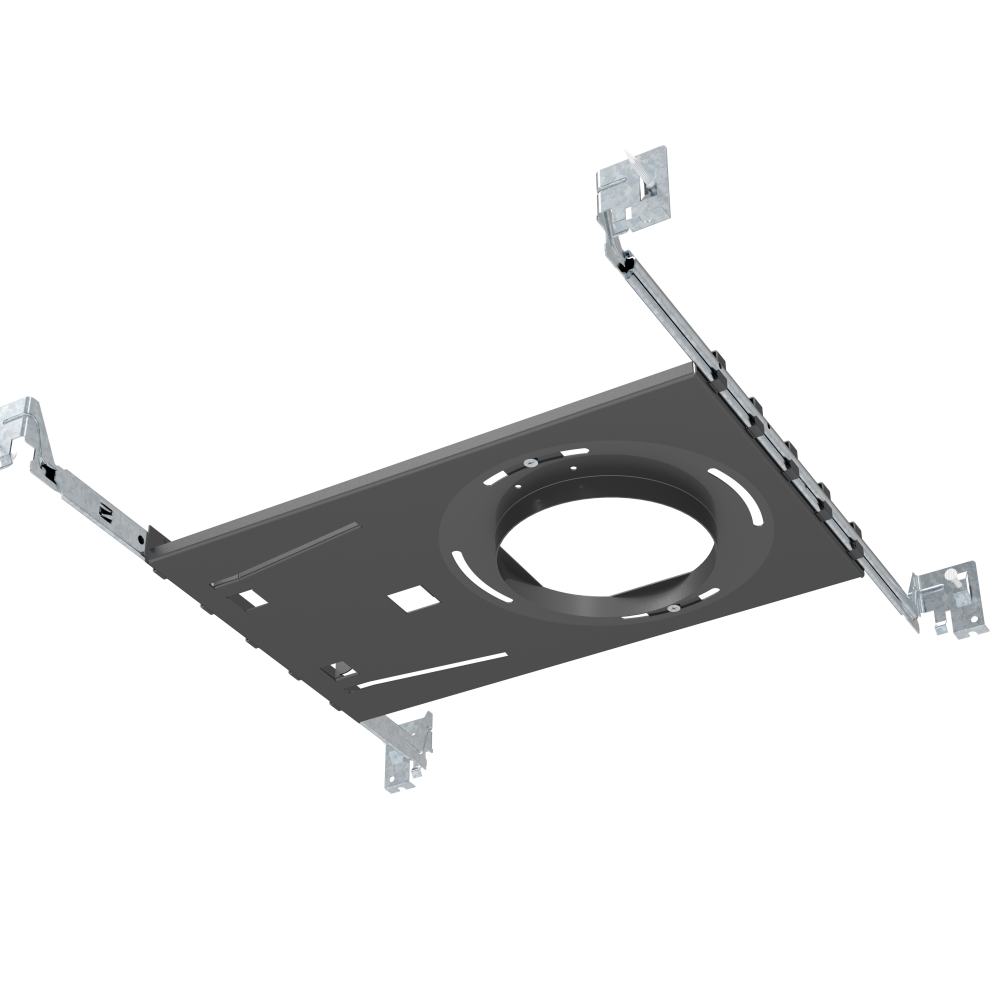

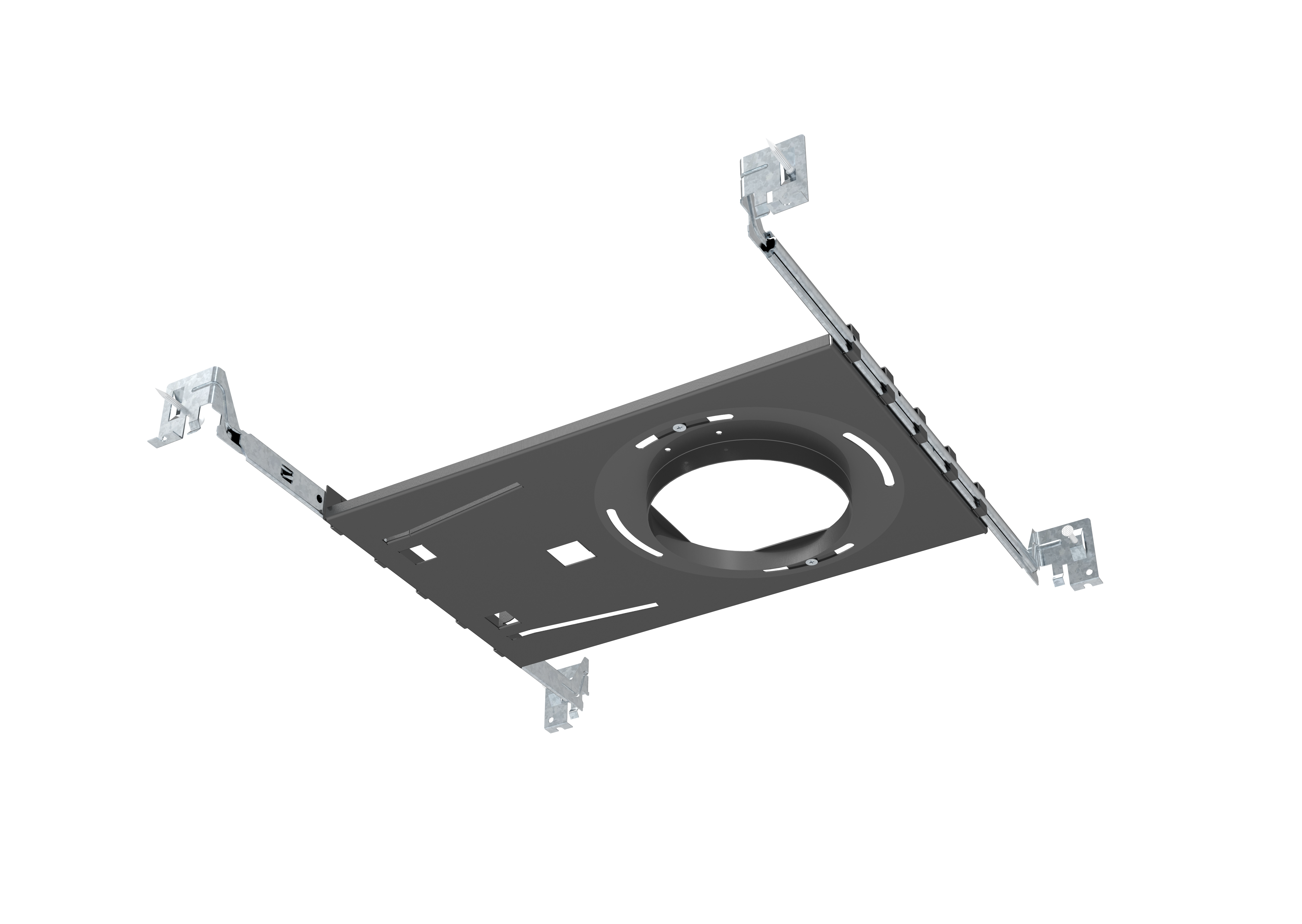

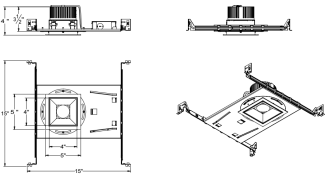

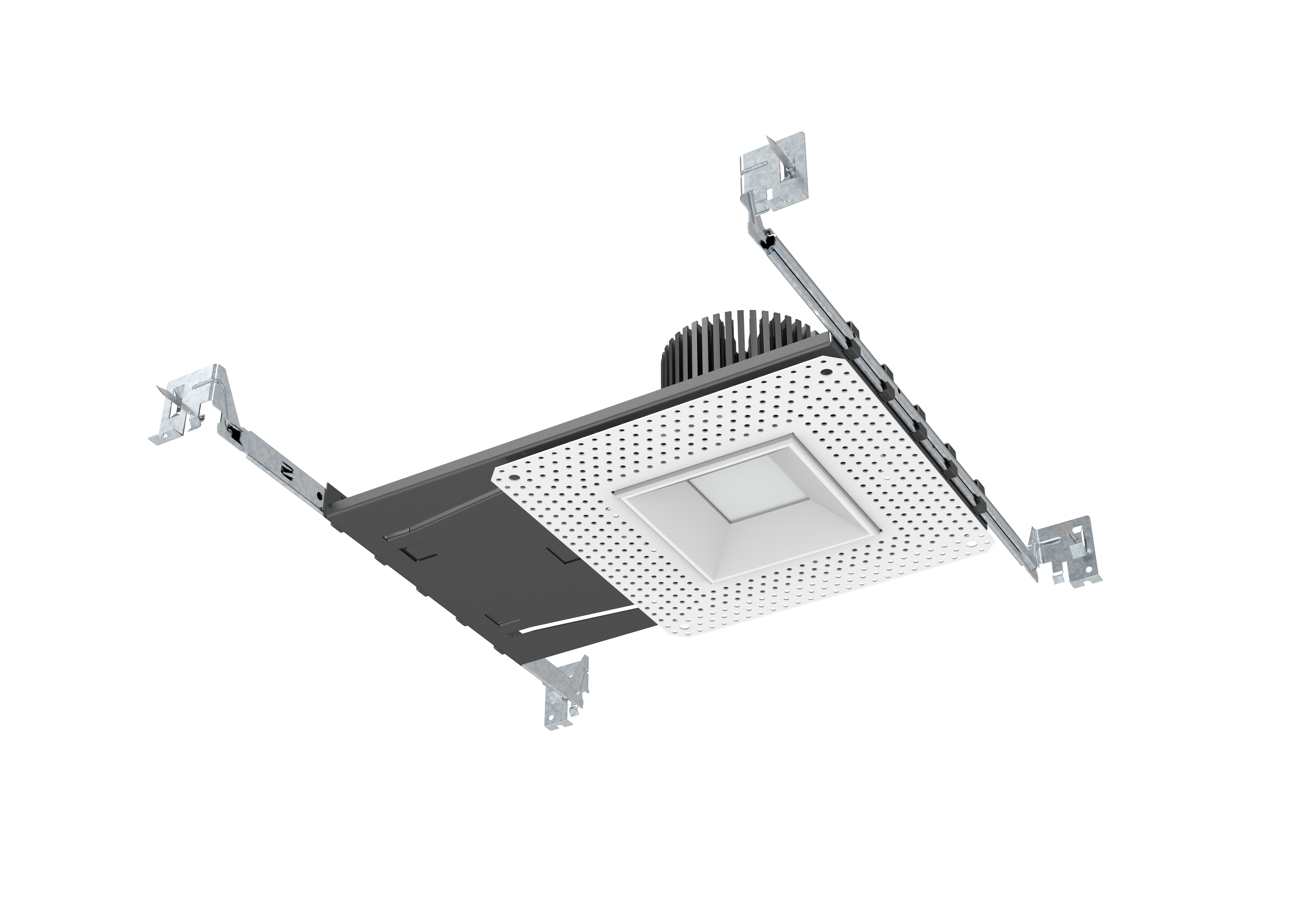

Four sides staddle install, the staddle can be adjusted from 14½ “-24”, to adapt to a variety of joist structures and keel sizes.
Lamp height can be adjusted, accommodate 1/2 “to 1 1/4” ceiling thickness.

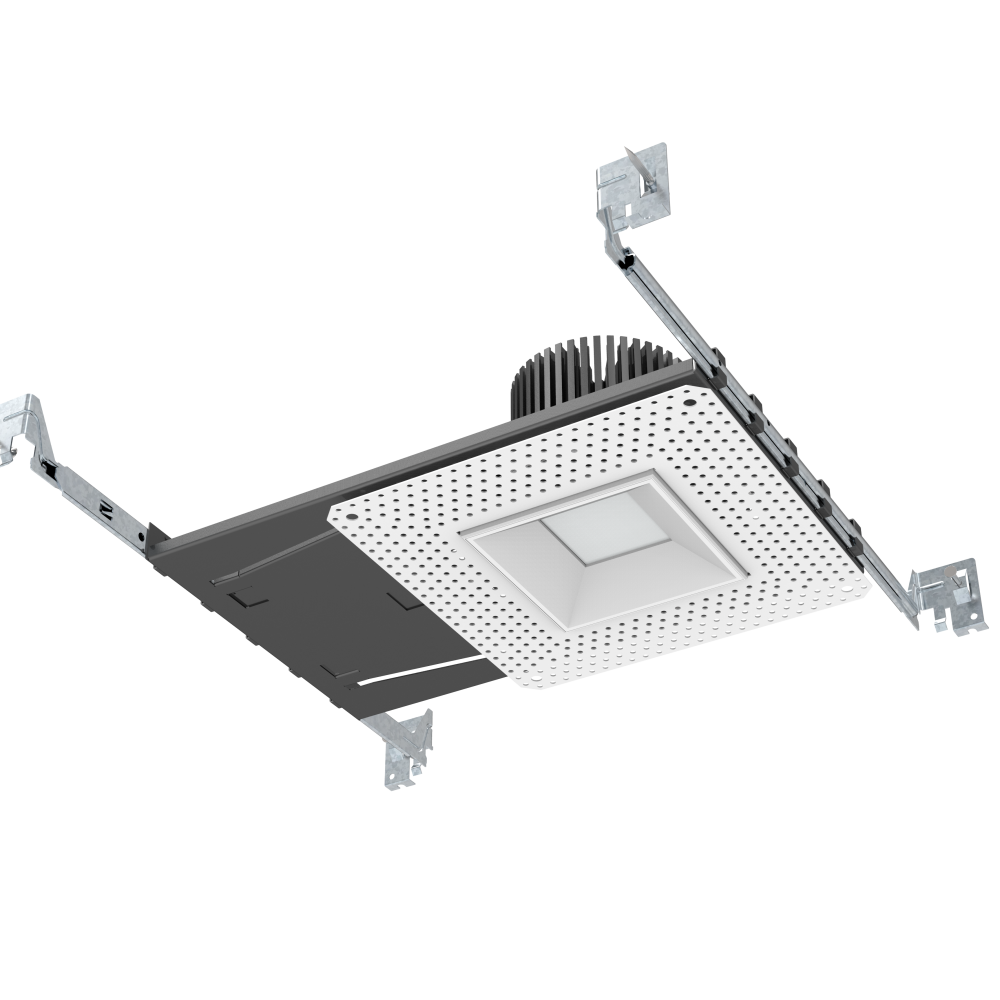

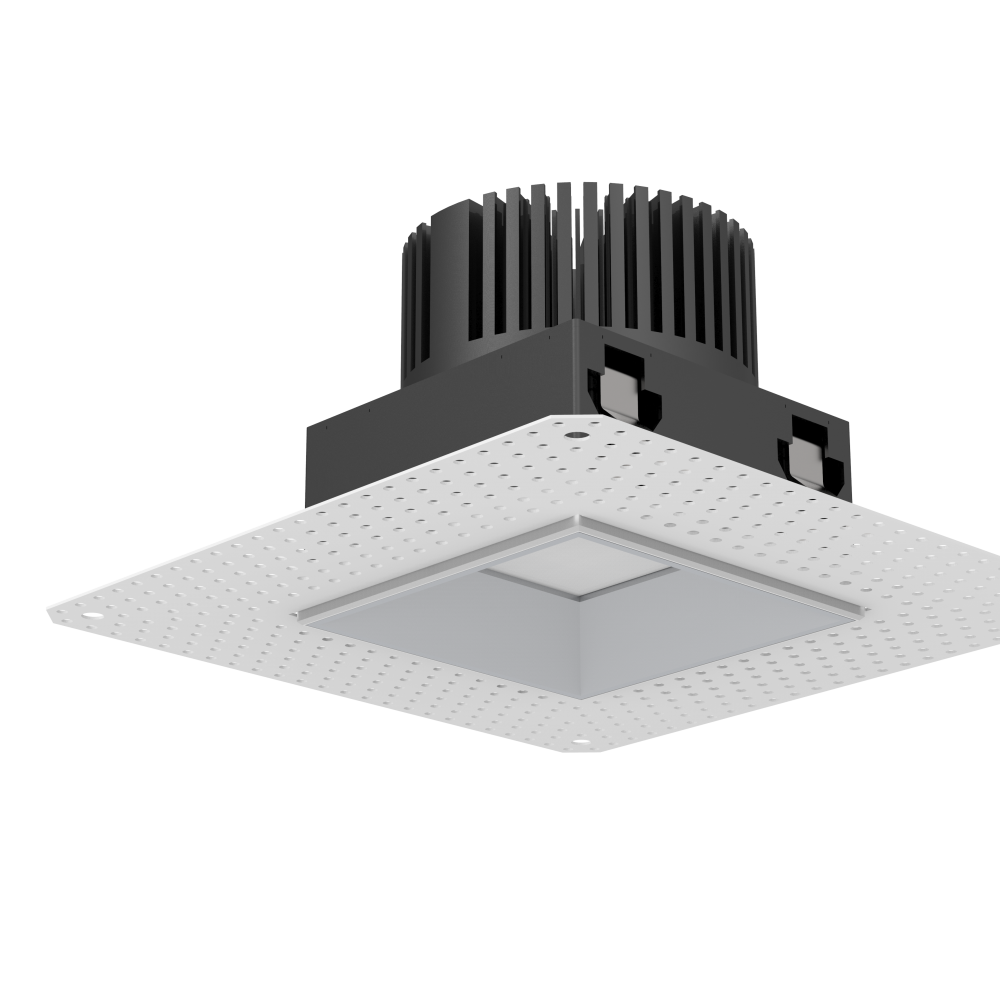

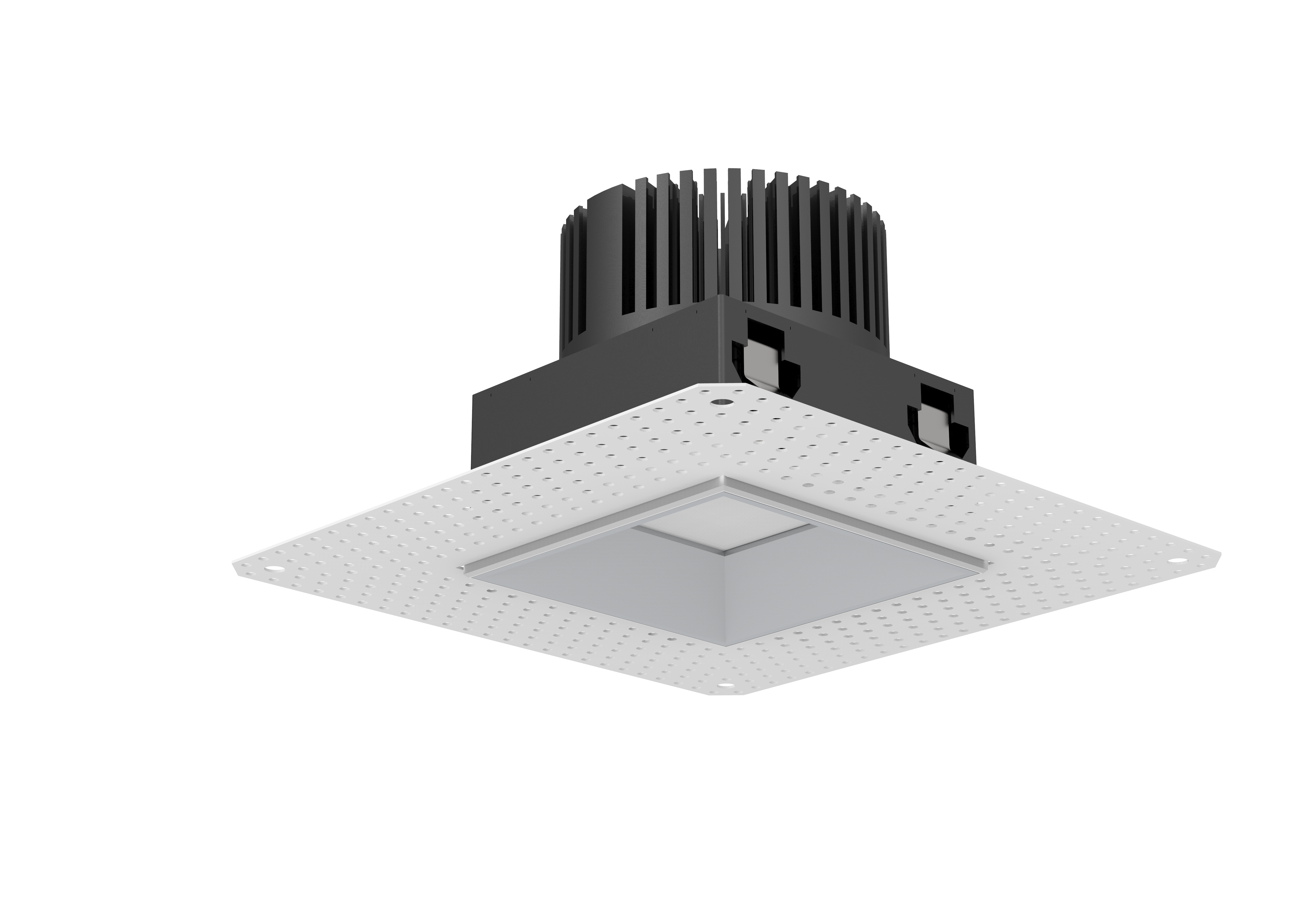

Trimmed and trimless available.
Rotated separated reflector, more convenient for parts replacement.
Isolation driver, high power factor and conversion efficiency, constant current output.
Application: Automotive and Parking, Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Retail.

 Specification

Power 15/20/30W
Voltage 120/230/277V
Lumen 1000/1500/2250LM
Power factor PF>0.98
CRI 80+CRI/90+
Frequency 50/60Hz
Dimmable NONE/TRIAC/RD 0-10V
CCT 2700/3000/3500K
Lifespan 50000 H
Certification ETL

Trim
Die-casting aluminum, spray high-reflective powder, high light uniformity.
Light Source
High light transmittance, strong light diffusion performance, no shadow, no glare.
Point light source turned into spherical light emitting.
Milky white light transmission rate reach 90% above.
Excellent concealed light source, achieve the best light transmission rate without seeing the LED lamp bead.
Radiator
Excellent cold forging radiator, good heat dissipation.
Driver
Independent isolation constant current drive, high power factor optional .
Constant current design, high reliability, stable performance.
Wide voltage design, 120V-277V available.
Meets the requirements of safety and electromagnetic compatibility.

Product File Download

# File Added by File size Downloads
1 pdf AL4-NC liteharbor 407 KB 184
